Steel Structure Shot Blasting Machine

Free Quote

Steel structure shot blasting machine is the most environment-friendly option for corrosion removal and surface preparation on a steel structure. It is used in almost every industry that uses metal, including aerospace, automotive, construction, foundry, shipbuilding, rail, and many others.

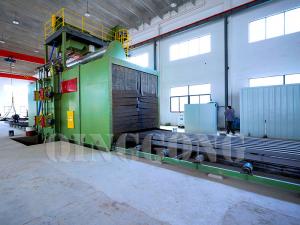

  • steel structure shot blasting machine 1

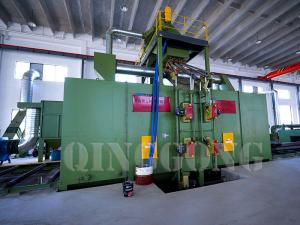

  • steel structure shot blasting machine 2

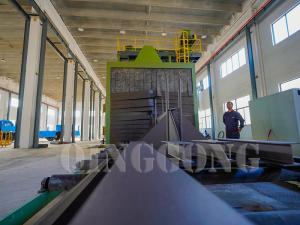

  • steel structure shot blasting machine 3

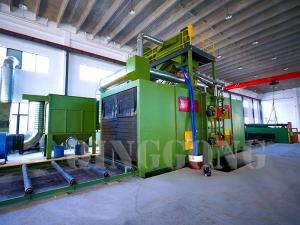

  • steel structure shot blasting machine 4
  • steel structure shot blasting machine 1
  • steel structure shot blasting machine 2
  • steel structure shot blasting machine 3
  • steel structure shot blasting machine 4
  • steel structure shot blasting machine 1
  • steel structure shot blasting machine 2
  • steel structure shot blasting machine 3
  • steel structure shot blasting machine 4

NEWS

Contact


Type

unit

QGX600

QGX1200

QGX1200

QGX1500

QGX1800

QGX2000

Effective blasting width

mm

600

1200

1200

1500

1800

2000

Dimension of entrance(W×H)

mm

800×1400

1400×1600

1400×2000

1700×1600

2000×1700

2200×2400

Work speed to achieve a cleaning of Sa2.5 ISO8501

m/min

0.5~3

0.5~3

0.5~3

0.5~3

0.5~3

0.5~2

Number of wheels×power

kW

8×7.5/11

8×11/15

8×11/15

8×11/15/18.5

8×11/15

12×11/15/18.5

Wheel optional

kW

10×11/15

10×11/15/18.5

10×11/15/18.5

14×11/15/18.5

Abrasive initial filling capacity

kg

4000

4000

4000

4500

8000

11000

Processed length of work piece

mm

1200~12000

1200~6000

1200~12000

3000~12000

2400~12000

2400~18000

Foundation pit required


Yes

Yes/No

Yes/No

Yes

Yes

Yes



steel structure shot blasting machine 1

Technical support:

1. The engineering team uses 3-D dynamic simulation design blast turbines layout to ensure that the steel shot ray can cover the surface of the steel structure 360 degrees.

2. The equipment adopts pneumatic control abrasive distribution system, which eliminates the blast wheel idling and injuring workers.

3. The machine adopt environment-friendly high-efficiency cartridge filter, dust collecting efficiency reach to 99.9%

4. The machine with limit switch on access door, that protect people, in any case, they open the door, the blast turbines will stop according.

5. Six layers protection curtain for protection the shot balls spatter out during blasting.

6. The machine with the sand-guide channel at the outlet of the equipment, and the steel shot on the steel structure can be poured out in the sand-guide channel, and then enter the recovery system.

7. The steel structure shot blasting machine uses high effective abrasive recovery system. A longitudinal screw conveyor to reclaim the used blasting media and contaminants into the crosswise screw conveyor, then into the bucket elevator and abrasive residue separator, and then the cleaned abrasive get into the storage hopper to recycle, the residual will get out of the recycling system from the air wash cleaner system.

steel structure shot blasting machine 2

Blast wheel:

On the base of the overseas advanced technology, QINGGONG MACHINERY independently developed KT series blast wheel.

1. The blast turbine is the heart of the steel structure shot blasting machine and has a direct influence on the work efficiency, the effect of the blasted surface and the production costs.

2. KT series blast wheel can improve efficiency by up to 30%. KT blast turbines reduce the consumption of medium, cut down energy consumption, then it can improve efficiency.

3. Improve the lifetime of “Hot Parts”. The material of blades, control cage, abrasive distributor and other spare parts are high chrome wear-resistant cast iron.

steel structure shot blasting machine 3
