The demand for reliable surface preparation equipment continues to increase across the UK manufacturing industry, particularly among companies involved in the
production of pressure vessels, storage tanks, and fabricated steel components. As coating systems become more advanced and corrosion protection standards become
increasingly demanding, manufacturers require efficient shot blasting equipment capable of delivering consistent cleaning quality while improving productivity and

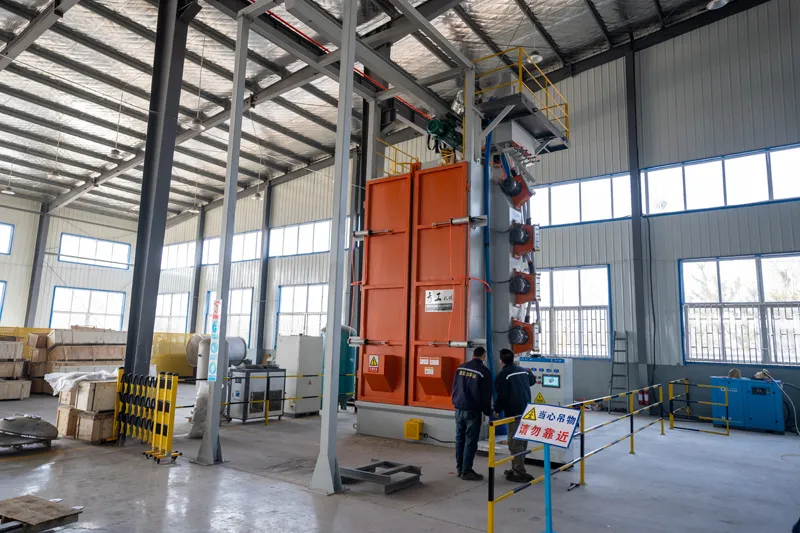

reducing operating costs. To meet these requirements, QGMA recently completed the production and delivery of a customized Hook Type Shot Blasting Machine for a
customer in the United Kingdom. The equipment was specifically designed for cleaning large steel pressure vessels before painting and protective coating, providing an
efficient and dependable solution for heavy-duty industrial applications.

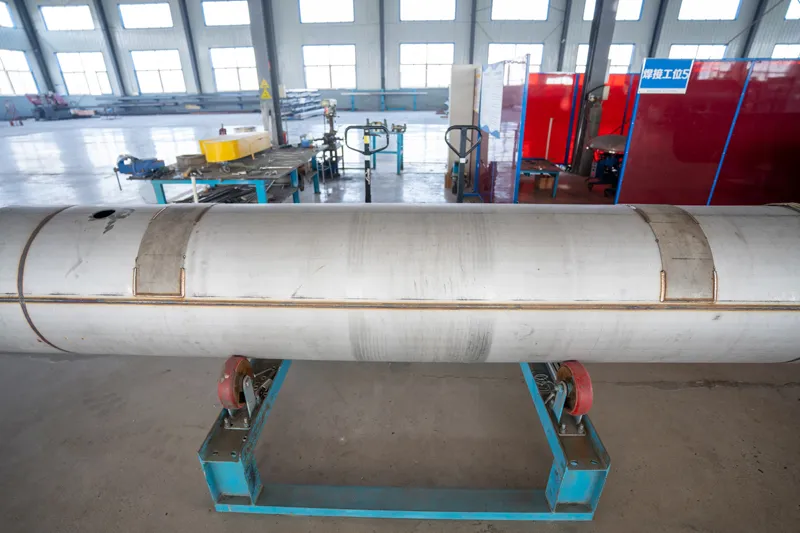

The customer manufactures pressure vessels for industrial sectors including energy, water treatment, compressed air systems, and chemical processing. These products are
typically fabricated from heavy steel plates and feature numerous welded joints, curved surfaces, and reinforcing structures that require thorough surface preparation
before coating. High-quality blasting is essential because the adhesion and long-term performance of industrial coatings depend directly on the cleanliness and roughness
of the steel surface. After reviewing the customer's production requirements and workpiece dimensions, QGMA designed a customized hook type shot blasting machine
capable of handling large pressure vessels while maintaining stable cleaning performance throughout continuous production.

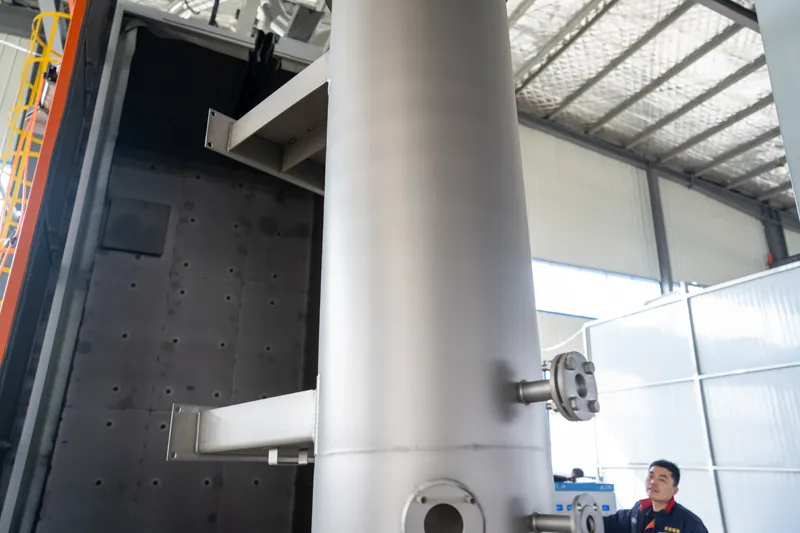

The supplied machine features a blasting chamber with internal dimensions of 2 × 4 meters, providing sufficient space for processing a wide range of pressure vessels with
different diameters and lengths. The chamber size was selected according to the customer's typical products, allowing operators to load large cylindrical tanks efficiently
without compromising blasting performance. Adequate internal space also ensures that steel shot can circulate freely around the workpiece, resulting in more uniform
surface treatment and improved cleaning efficiency. The machine is suitable for both individual pressure vessels and small production batches, giving the customer greater
flexibility in daily manufacturing operations.

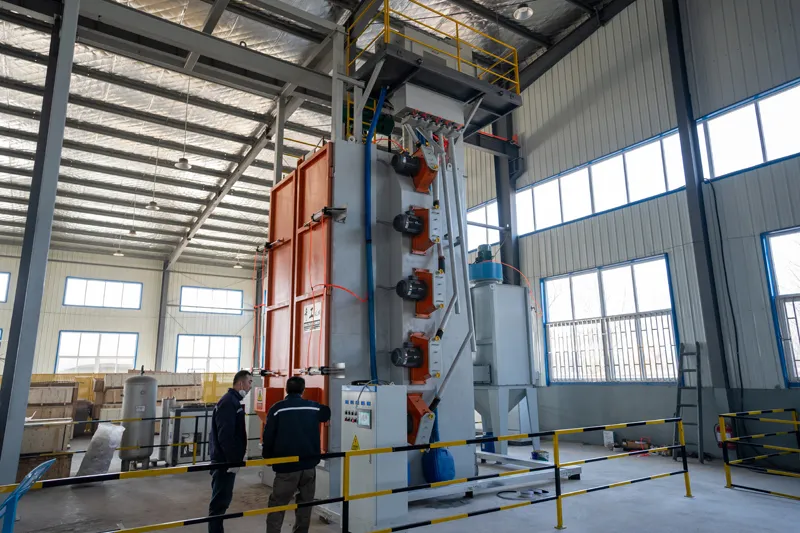

To achieve excellent cleaning performance, the machine is equipped with five high-efficiency blast turbines that are strategically positioned around the blasting chamber.
Each blast turbine delivers a powerful stream of steel shot at high velocity, effectively removing rust, mill scale, welding residue, oxidation, and other surface contaminants
from the steel surface. The arrangement of the five turbines has been carefully optimized to create overlapping blasting zones, ensuring that every section of the pressure
vessel receives consistent abrasive impact during operation. As the suspended workpiece rotates inside the chamber, the abrasive flow reaches all exposed surfaces,
including curved sections and welded areas that are often difficult to clean using conventional methods. This configuration significantly reduces shadow areas while
improving the overall quality and uniformity of surface preparation.

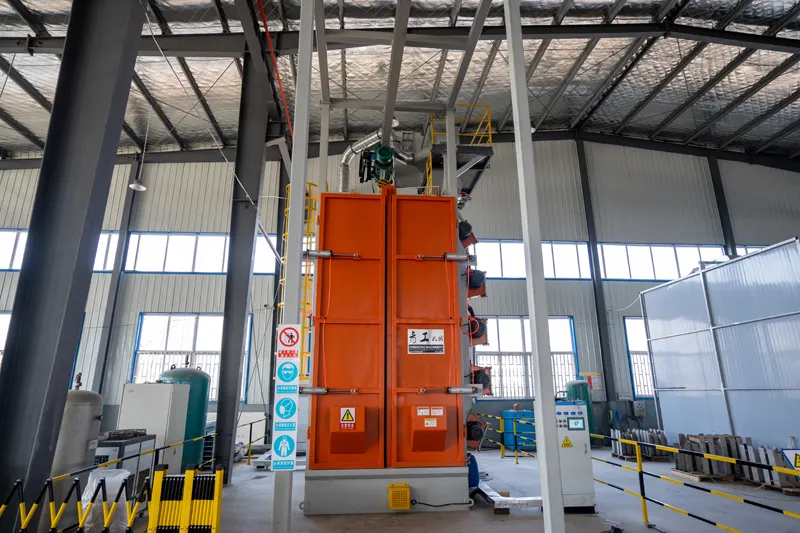

One of the notable features of this customized project is the pneumatic chamber door, which was selected to improve both operational convenience and workplace safety.
Compared with manually operated doors, the pneumatic door opens and closes smoothly with minimal operator effort, reducing loading time and increasing production
efficiency. The automated movement also minimizes the risk of improper door positioning before blasting begins, helping maintain a secure operating environment
throughout the cleaning cycle. For customers processing heavy pressure vessels on a regular basis, the pneumatic door contributes to faster workflow and more reliable
daily operation.
The hook conveyor system remains one of the most suitable solutions for cleaning pressure vessels because it allows heavy cylindrical workpieces to remain suspended
while rotating continuously during blasting. This movement exposes every side of the vessel to the abrasive stream without requiring manual repositioning, resulting in
consistent cleaning quality across the entire surface. Compared with manual blasting or fixed-position cleaning methods, the rotating hook design improves efficiency
while reducing labor intensity. It also minimizes the possibility of missed areas that could negatively affect coating adhesion after painting.
Efficient abrasive recycling is another important feature incorporated into the equipment supplied to the UK customer. After striking the pressure vessel, the steel shot falls
into the recovery system, where it is automatically collected, transported, separated, and returned to the blast turbines for reuse. Dust, broken abrasive particles, welding
debris, and other contaminants are removed during the separation process, ensuring that only qualified abrasive media re-enters the blasting cycle. This closed-loop
recovery system reduces abrasive consumption, lowers operating costs, and maintains consistent blasting performance throughout extended production periods.
Continuous recycling also improves the environmental performance of the equipment by reducing unnecessary material waste.
To provide a cleaner working environment, the machine is equipped with a high-efficiency dust collection system capable of continuously extracting airborne dust
generated during the blasting process. Maintaining effective dust control is particularly important when processing large fabricated steel components because significant
amounts of rust, scale, and abrasive fines are released during cleaning. The filtration system helps maintain clear visibility inside the equipment while reducing dust
accumulation throughout the workshop. A cleaner operating environment supports better equipment reliability, improves operator comfort, and assists manufacturers in
meeting modern workplace environmental standards.
Durability was another key consideration throughout the design process. The interior surfaces of the blasting chamber are protected by wear-resistant liners that withstand
continuous impact from high-speed steel shot. These protective liners significantly extend the service life of the chamber while reducing maintenance requirements over
long-term operation. The blast turbines, abrasive recovery components, and conveying system are all manufactured using robust industrial-grade materials to ensure
dependable performance under demanding production conditions. Combined with an intelligent electrical control system, the equipment offers stable operation,
straightforward maintenance, and reliable performance for long production schedules.
Before shipment, the complete machine underwent comprehensive factory testing to verify the performance of every major system, including the blast turbines, abrasive
circulation equipment, pneumatic door, hook rotation mechanism, dust collector, and electrical controls. Each inspection was conducted to ensure that the equipment met
the project specifications before international transportation. After successful testing, the machine was carefully prepared for export and shipped to the United Kingdom,
where it will support the customer's production of high-quality pressure vessels for industrial applications.
This successful delivery further demonstrates QGMA's capability to provide customized shot blasting solutions for international manufacturers with specialized production
requirements. Every project is developed according to the customer's workpiece dimensions, production capacity, and operational needs rather than relying on a standard
machine configuration. By combining practical engineering design, reliable manufacturing quality, and application-focused customization, QGMA continues to supply hook
type shot blasting machines that improve surface preparation quality, enhance production efficiency, and support long-term manufacturing performance. As demand for
durable, corrosion-resistant steel products continues to grow worldwide, advanced shot blasting technology remains an essential part of modern pressure vessel
production, and customized equipment solutions continue to help manufacturers achieve higher quality standards and greater operational efficiency.
