Large weldment profile shot blasting machine

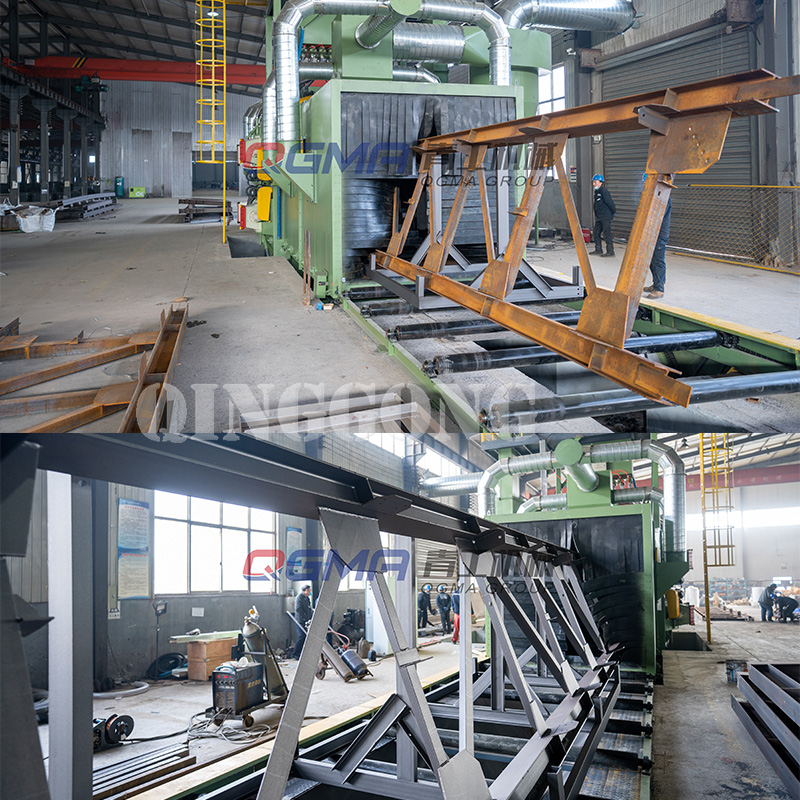

This is the large type roller conveyor shot blasting machine for our conveyor manufacturer customer, The machine is mainly to remove rust for the large weldment parts after cleaning the workpiece surface strength and adhension will be increase. This kind of raw material can promise the quality.

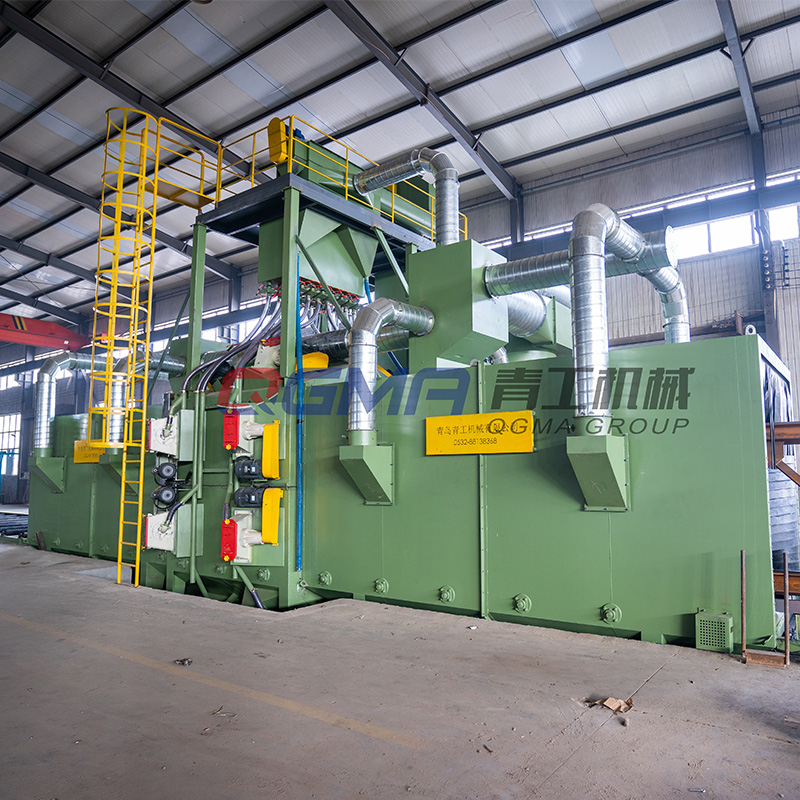

This machine effective cleaning opening size is 2.3m*2.3m, with 16 units blasting wheels. In order to ensure the best projection effect, the angle of each blasting wheel is determined after 3D simulation, which is also one of the key factors affecting the cleaning effect.

So how to work for this kind of large type shot blasting machine? The first step is put the workpiece on the roller conveyor and then turn on the electric cabinet. The workpiece will through the roller enter into the blasting chamber. After the photoelectric detection detects that the workpiece enters the blasting chamber, 16 units blasting wheels start to work. The steel shot hits the surface of the workpiece at a speed of 78m/s without any dead angle. Then the steel shot after shot blasting will fall into the screw conveyor and transport to the bucket elevator. The elevator will take the steel shot to the separator. The separator also one of the important part in shot blasting machine. Only the separator fully separates the steel shot can the service life of the shot blasting machine be guaranteed. For this reason, we have specially made three-stage separation, which fully guarantees the recycling of the steel shot. This roller conveyor shot blasting equipment adopts to 3-level dust collect, first use the settling box separates the largest particles from the air, and performs coarse filtration through the cyclone dust collector. And the last is the filter cartridge. So that the dust collector filter effect can up to 99.5%. After cleaning, the workpiece will transport from outlet roller conveyor at a constant speed. Compared with other traditional methods such as manual cleaning, the shot blasting machine, such as floor shot blasting machine, not only have good cleaning effect and high efficiency, but also saves a lot of cost and also improve product quality and competitive.

If you want to know more about the characteristics of the shot blasting machine, please contact us. Qinggong Machinery will always work for you.
