Tumble belt shot blasting machine is the most universal among all shot blasters as their design makes them suitable for processing parts of different sizes in bulk loads. Shot blasting of casts, forged and pressed parts, remodelled cold or hot, of various complicated forms, springs, etc. (weighing up to 20 kg and manufactured in smaller and large series, the volume of a particular filling may be up to 500 L, mass up to 1,000 kg), cleaning surface, removing casting sand and filings and consolidating the surface (microhandling), roughing the surface before colouring, etc.


NEWS

Contact

Tumble belt shot blasting machine with rubber belt


Type

MB150G

MB300G

MB400G

Productivity(t/h)

0.6-1.2

1.5-2.5

3-5

Max volume charge (dm3)

150

300

400

Max advised load (kg)

200

600

800

Drum diameter (mm)

650

1000

1000

Wheels

1

1(2)

1(2)

Wheel power (kW)

7.5 (11)

11/15 (2x11)

11/15 (2x11)

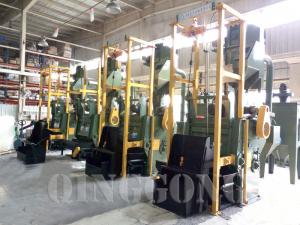

tumble belt shot blasting machine 1

Machines have a perpetual caterpillar made from perforated rubber belt. Treated objects are put by a special filling contraction to the caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated object to be quality blasted in a jet of abrasive. For emptying, the caterpillar is started-up in the opposite direction turning mode.

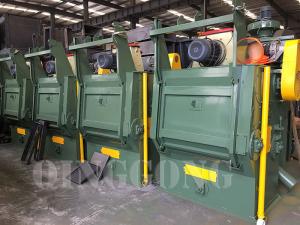

tumble belt shot blasting machine 2

The machine's housing is protected by wear-resistant manganese steel. High efficiency of the machine is provided by the system for continued returning and cleaning of the abrasive, along with efficient turbines made from wear-resistant materials.
Standard equipment of larger machines includes PLC Siemens, display, timer automatic or manual mode, automatic start-up of turbines, working-hours counter, etc.
The machine may be equipped with a magnetic separator, vibration conveyor and variable frequency drive for the turbines.

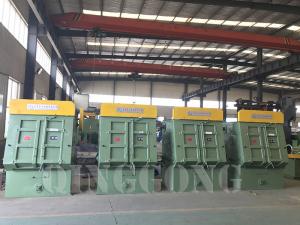

tumble belt shot blasting machine 3

Tumble belt shot blasting machine with manganese steel belt


MACHINE TYPE

G-150

G-250-1

G-450-1

G-750-2

G-1100-2

G-2000-2

Charging volume (l)

150

250

500

750

1100

2000

Max. recommended charging weight (kg)

300

500

1000

1500

2500

5000

Max. recommended piece weight (kg)

15

100

200

250

400

1000

Width of shotblasting chamber (mm)

850

1100

1100

1200

1700

2400

Diameter of shotblasting chamber (mm)

750

910

1200

1600

1450

1650

Total installed power (kW)

18.3

22.5

24

38

55

120

Diameter of throwing wheel (mm)

380

380

380

380

380

506

Power of abrasive throwing wheels (kW)

15

15

18.5

2 x 18,5

2 x 22

2 x 45

Air requirements (m3 / h)

2000

4500

5500

9600

12000

18000

Capacity of the machine (kg / h)*

600

1000

2000

3000

4400

8000

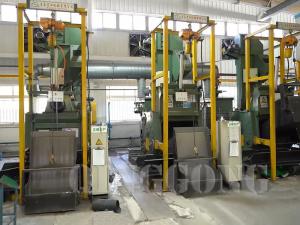

tumble belt shot blasting machine 4

Machines have a perpetual caterpillar made from steel flaps. Treated objects are put by a special filling contraction to the caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated objects to be quality blasted in a jet of abrasive. For emptying, the caterpillar is started-up in the opposite direction turning mode. Tumble belt shot blasting machine with manganese steel belt, the volume of a particular filling may be up to 2,000 L, mass up to 5,000kg.
