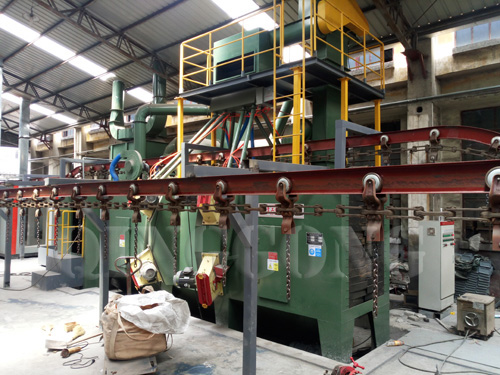

LPG gas cylinder surface treatment overhead monorail type shot blasting machine

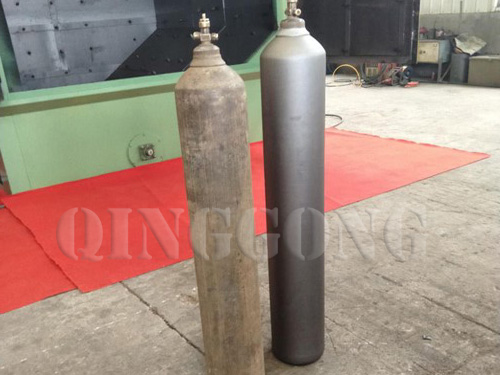

The overhead monorail type shot blasting machine is the best choice to remove the Lpg Gas cylinder  rust  、oxidation 、 paint or others.

The overhead monorail type shot blasting machine is suitable for shot blasting of large and small work pieces. The work piece can run continuously or step by step with the hanging chain or adopt advanced accumulation push-type overhead rail conveying work, so that the work piece is stopped in the loading and unloading and shot blasting areas, then the fixed-point loading and unloading and fixed-point shot blasting processes are realized.

The lifting weight is 50-2000kg, the production efficiency is high and the operation is reliable, the work pieces with more complicated surfaces and inner cavities, such as the engine block, cylinder head, and motor shell, have a better cleaning effect. It is ideal for industries such as automobiles, tractors, diesel engines, motors, and valves.

As you know that the recovery system is very important part for shot blasting machine and the recovery system of shot blasting machine ,as the name implies, refers to the abrasive recycling  in the whole process of shot blasting machine process . The recovery system is consist of screw conveyor system, elevator system, separate system and abrasive control system.


When the abrasive hit on the workpiece surface ,it will fall down to the  screw conveyor. The screw conveyor carry the abrasive to the bucket elevator. The elevator belt drives the hopper to transport the abrasive to the separator, and then through the screw conveyor to the separate area. The cleaned abrasive are stored into the storage silo. When the abrasive valve is opened pneumatically, the abrasive into the blast wheel and projection to the workpiece surface . Recycle to use.
