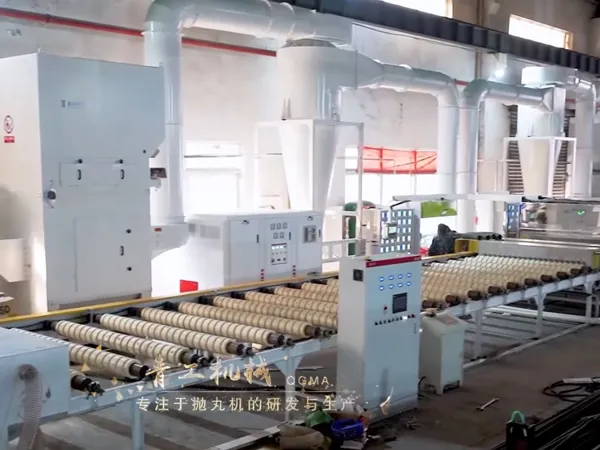

Rebar Epoxy Resin Coating Line

Core Process of Rebar Epoxy Resin Coating Line

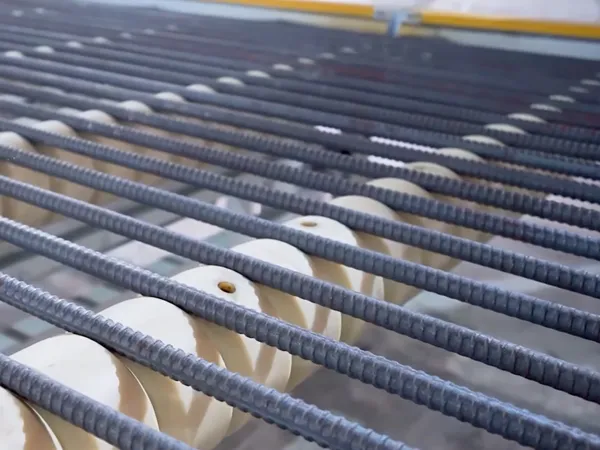

1. Feeding & Conveying Deformed

steel bars are fed into the production line via a feeding rack, roller conveyor, or overhead conveyor chain, passing through each station at a constant speed.

2. Surface Pretreatment

Shot Blasting machine, Removes mill scale, rust, and oil contaminants. The surface roughness reaches Grade Sa2.5 with a roughness value of 40–80 μm, ensuring strong coating adhesion.

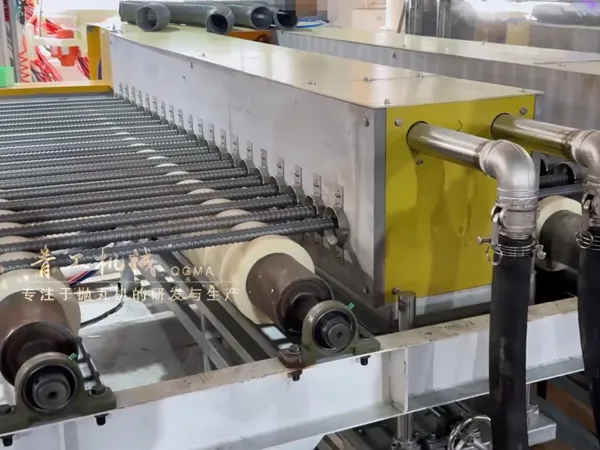

3. Medium-Frequency Induction Heating

The steel bars pass through medium-frequency induction furnace and are rapidly heated to 20–250℃ (precision temperature control ±5℃) to prepare for powder melting.

4. Electrostatic Powder Coating

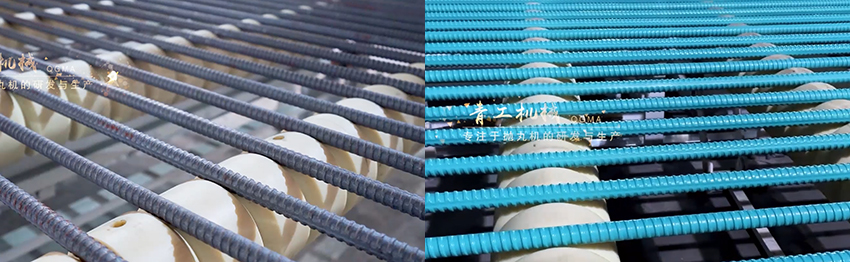

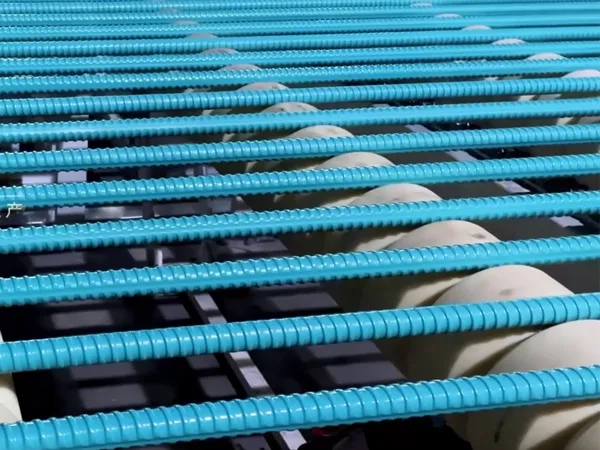

An electrostatic powder coating system is adopted. Epoxy powder is charged under a high voltage of 40–80 kV and uniformly adsorbed onto the surface of the hot steel bars. Coating Thickness: 0.18–0.30 mm (adjustable).

5. High-Temperature Curing & Flow Leveling The coated bars enter a hot-air circulating curing oven and are held at 180–220℃ for 10–15 minutes, allowing the powder to melt, flow, and cross-link into a continuous film.

6. Cooling & Quality Inspection Air cooling or water cooling to room temperature

Advantages of Rebar Epoxy Resin Coating Line

1. Excellent Anti-corrosion Performance: The coating is dense and impermeable, isolating water, oxygen and chloride ions. It is resistant to acids, alkalis and salt spray, with a service life 3–5 times that of ordinary steel bars.

2. Strong Adhesion: Achieved by high-temperature melting and electrostatic adsorption, with bonding strength ≥5 MPa. No cracking or peeling occurs during bending.

3. Efficient & Stable Production: Continuous automation, capable of 24-hour operation, with a single-shift capacity of up to hundreds of tons.

4. Eco-friendly & Energy-saving: High powder utilization rate (≥ 95%), no solvent volatilization, complying with environmental protection requirements. 5. Wide Adaptability: Capable of processing deformed steel bars, round bars and finish-rolled deformed bars with diameters of φ6–50 mm, meeting Chinese, American and British standards.

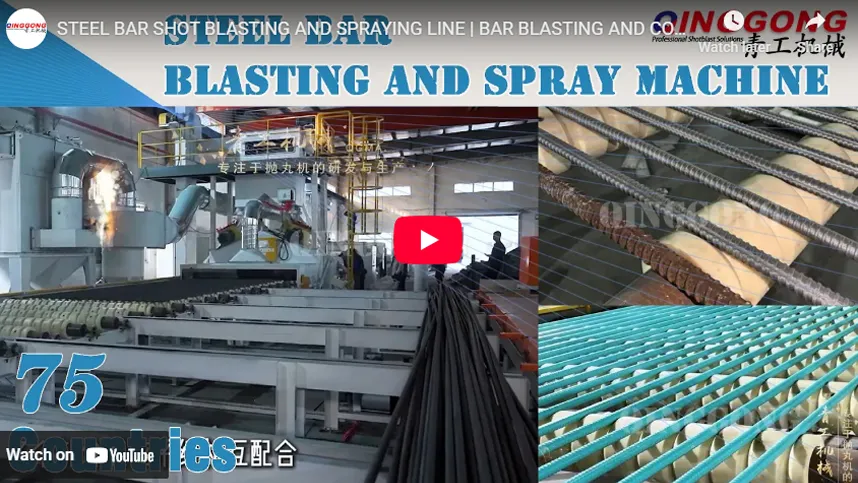

A Video of Rebar Epoxy Resin Coating Line
