Barrel type shot blasting machine in production

Recently, we are producing a barrel type shot blasting machine for American customers in our workshop. This machine is composed of one blast turbine. The placement position and the shot angle of the shot blasting machine are specially designed to reduce the dead angle of the workpiece inside the machine, shorten the spraying time, and truly achieve high efficiency. The principle of high economy. The blast turbine part of the barrel shot blasting machine is imported from Taiwan, which has the characteristics of large shot blasting volume, high ejection speed, low noise, wide angle and high cleaning efficiency. The structure of the special distributor can achieve the effect of the shot blasting ratio. At the same time, the quick-release impeller design solves the current difficulty of replacing the blades of the shot blasting machine. The blade of the barrel shot blasting machine is inserted from the center of the impeller, and the blade is fixed by centrifugal force during the rotation of the impeller, so no clamping tools are required. When removing the blade, you only need to tap the outer end of the blade. It takes only 5-10 minutes to remove the blades from the center of the impeller, and disassemble 8 blades. It also takes 5-10 minutes to check the wear of the control cage and the distributor at the same time.

Barrel type shot blasting machine in production 2.jpg

Our barrel type shot blasting machine is a new type of shot blasting machine produced by our company absorbing the technology of advanced German company. It adopts our unique drum shaking structure. During shot blasting, the drum not only rotates but also shakes up and down. So the product in the cylinder is completely stirred to achieve a uniform cleaning effect. This machine can be used to clean the workpieces that are easy to flip and fall, the non-brittle parts that are not easy to break, and the casting, forging and welding parts with not deep cores, and to remove the sand and oxide scale on the surface of the workpiece. The whole machine adopts PLC control, which has a high degree of automation. It can be used as a stand-alone machine or by wiring.

We are professional shot blasting machine manufacturer, if you have questions in shot blasting area, please do not hesitate to contact us.

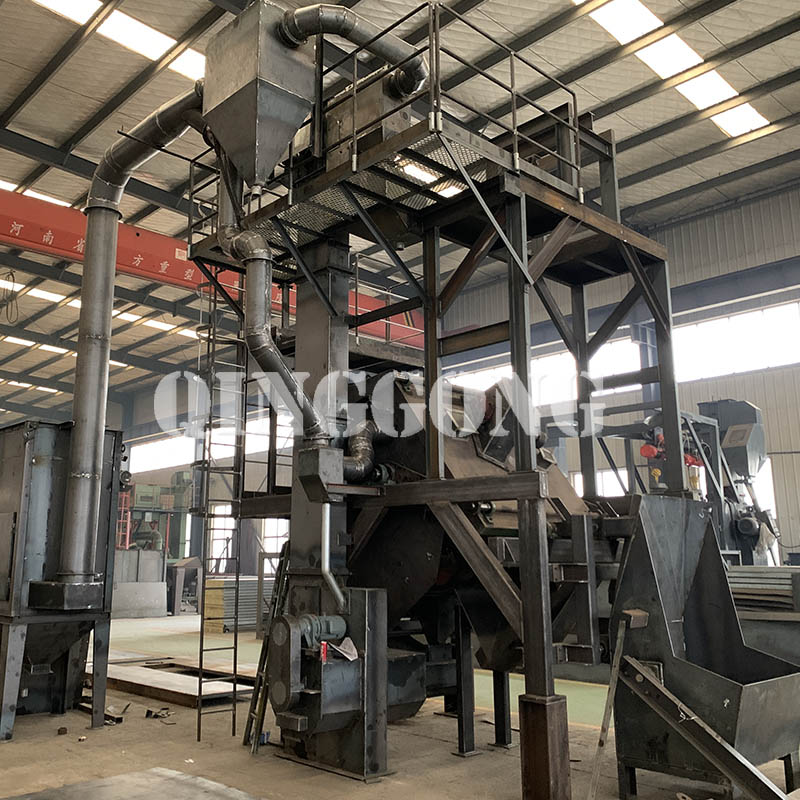

Barrel type shot blasting machine in production 3.jpg
