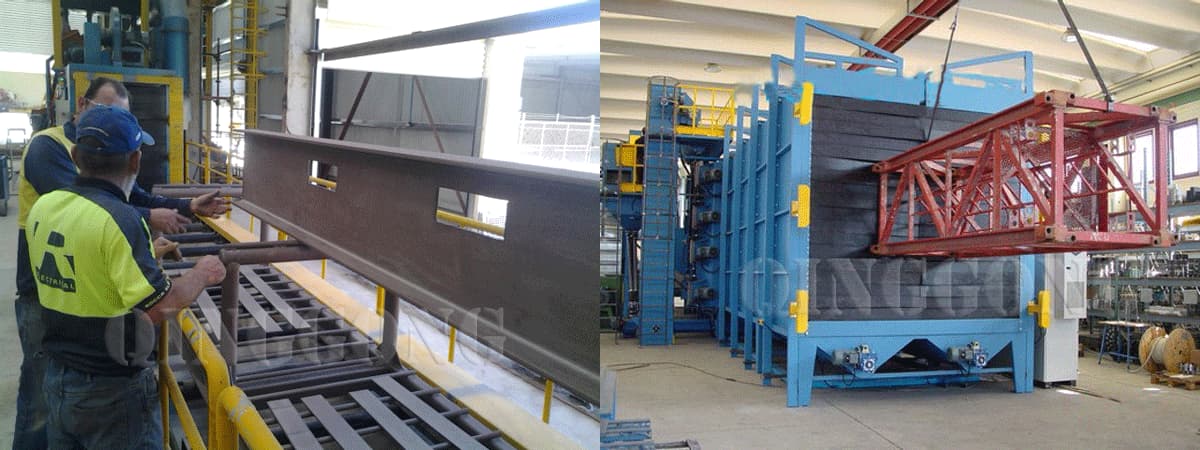

The Application of Shot Blasting Machine in Construction Industry

Shot blasting machines have a wide range of applications in the construction industry, such as steel structures, angle steel, welded parts, metal sheets, section bars, beams, pipes, etc. must be de-rusted, eliminating burrs, oxides, and welding scale before use to meet the structural requirements. The shot blasting machine produced by our factory does not require manual descaling but reduces the environmental pollution of pickling.

For this work please refer to the use of roller conveyor shot blasting machine, preservation lines, skew shot blasting machine, tunnel shot blasting machine, etc.

Why does the construction industry need shot blasting machines?

1. Improve the adhesion of anti-corrosion coatings on steel structures

Steel structures in buildings (such as bridges and factories) must be coated with anti-rust paint before use. Shot blasting machines can thoroughly remove oxide scale and rust from the steel surface, while the high-speed impact of shot creates tiny pits on the surface (professionally called "anchor patterns"). This rough surface allows paint adhesion to be increased several times, thus greatly extending the service life of the steel structure, and the anti-corrosion effect is far superior to simple sanding.

2. Optimize the bonding effect between concrete and asphalt pavement

Whether laying a waterproof layer on a bridge deck, repairing an airport runway, or restoring the friction of an aging road surface, a clean, rough base layer is essential. Shot blasting machines can clean away laitance (a fragile thin layer) from concrete surfaces and oil seepage from asphalt pavements without dust, exposing the solid aggregate. This ensures a firm waterproof layer and restores the road surface's anti-skid properties through a uniformly rough texture, guaranteeing driving safety.

What types of shot blasting machines are needed for which components in the construction industry?

USE TYPE	components	Purpose	Blasting Machine type
Steel Structural Components	H-beams, steel plates, steel pipes, steel beams, steel columns, etc.	It removes oxide scale and rust, creating a rough surface (anchor texture) for spraying anti-corrosion primer, which greatly improves the adhesion of the paint layer.	Roller Conveyor Shot Blasting Machine The workpieces are automatically conveyed through the shot blasting chamber on roller conveyors, achieving extremely high efficiency.
Steel Structural Components	Irregular steel structural components, cast steel nodes, and irregular parts	Clean up workpieces that are difficult to transport, are large in size, or have irregular shapes, and remove welding slag and oxide scale.	Hook-type Shot Blasting Machine The workpiece is hoisted into the enclosed shot blasting chamber for processing using a hook. It is highly flexible and suitable for a wide variety of workpieces in small batches.
Curtain walls and aluminum alloy decorative components	Aluminum alloy curtain wall thin panels, aluminum single panels, aluminum ceiling panels	It removes oxide scale and release layer from aluminum surfaces, creating a uniformly rough surface and improving the adhesion of fluorocarbon coating and powder coating; the mesh belt will not scratch the aluminum plate surface when laid flat.	Wire Mesh Shot Blasting Machine s The workpieces are laid flat on the wire mesh belt and conveyed at a uniform speed, unlike crawler conveyors which cause tumbling and collisions. Thin aluminum sheets, aluminum veneers, stone slabs, and thin-walled steel pipes will not be scratched, dented, or chipped.
Concrete/Asphalt Pavement	Concrete bridge deck and beam surface Highways, tunnels, cement pavement, sharp bends and steep slopes Airport Runway	Remove laitance and contaminants from the surface, and roughen the surface to create a uniform, rough texture, thereby enhancing the bond strength between the waterproofing layer and the concrete.	Floor Shot Blasting Machine It can move on its own, operate in a dust-free environment, and can precisely control the roughness of the treated surface. It is the standard process equipment for bridge deck waterproofing layer construction.
Concrete/Asphalt Pavement	Small hardware parts: embedded parts, bolts, fasteners, small connectors, small aluminum parts	Surface cleaning	Tumble Belt Shot Blasting Machine Features: Automatic workpiece tumbling allows for one-time cleaning of small batches of workpieces, with a workpiece weight ≤50kg.
Construction Stone	Granite and marble slabs, floor tiles, kerbstone slabs	Granite and marble are shot-blasted to create a uniform matte finish with a soft texture, unlike flamed granite which can cause burns.	Wire Mesh Belt Shot Blasting Machine Features:The me sh belt supports the stone without it rolling, bumping, or chipping; it creates a matte finish with a non-slip texture and removes cutting marks.
