Hanger type shot blasting machine for Poland customer

Recently QINGGONG Machinery has successfully delivery a hanger type shot blasting machine for Poland customer. Let us share some details to you.


According to the max dimensions of workpieces provided by the customer, our engineering team designs the blasting chamber size to 1800*1800*2800 mm, the effective cleaning of maximum size is Φ1000*1600. The power of the whole machine is approx. 37. With two 7.5kw high cleaning effective blast turbines. The blasting time is 5-8 mins. Also in order to improve the productivity improvement, customer chooses the Y type transport system, pneumatic door, PLC system to achieve automatic working.

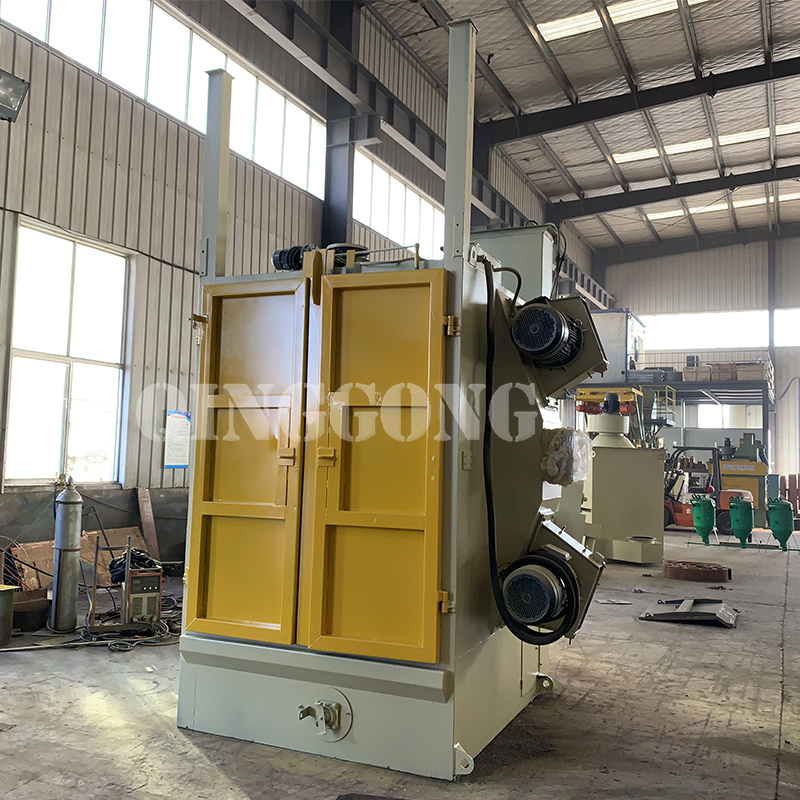

Hanger type shot blasting machine for Poland customer 2.jpg


The hanger type shot blasting machine is suitable for surface cleaning or strengthening treatment of medium and small castings and forgings in the casting, construction, chemical, electrical, machine tool and other industries. It is especially suitable for surface cleaning and shot blasting of castings, forgings, aluminum alloy castings and steel structural parts of multiple varieties and small batches to remove a small amount of sticky sand, sand core and oxide scale on the surface of the workpiece; Surface cleaning and strengthening; especially suitable for cleaning slender and thin-walled parts that are not suitable for collision.

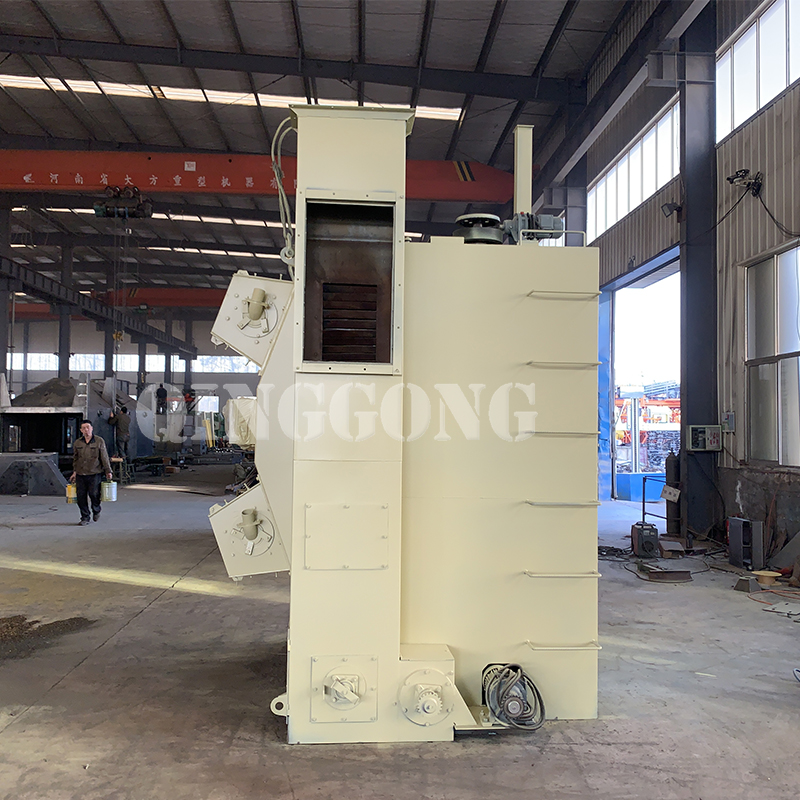

Hanger type shot blasting machine for Poland customer 3.jpg


When assembling the hanger type shot blasting machine, first assemble the shot blaster parts, dust collector, and other important parts together. Then install the machine that provides projectiles and split projectiles on the separator, you can prepare your own tools to receive the separated objects and then recycle or dispose of them. First, choose the foundation when installing, that is to say, the position of the machine should be kept flat, and the installation can be started after confirming the position of the machine. After assembling, another step is to debug to see if the machine can be used normally. Under normal circumstances, the projectiles thrown should be uniform and without gaps, so as to ensure the high efficiency of the work, so if the projectiles flowing out are not uniform, you can manually adjust the weight and the separation plate until the uniform can be separated So far.
