Hanger Type Shot Blasting Machine

Free Quote

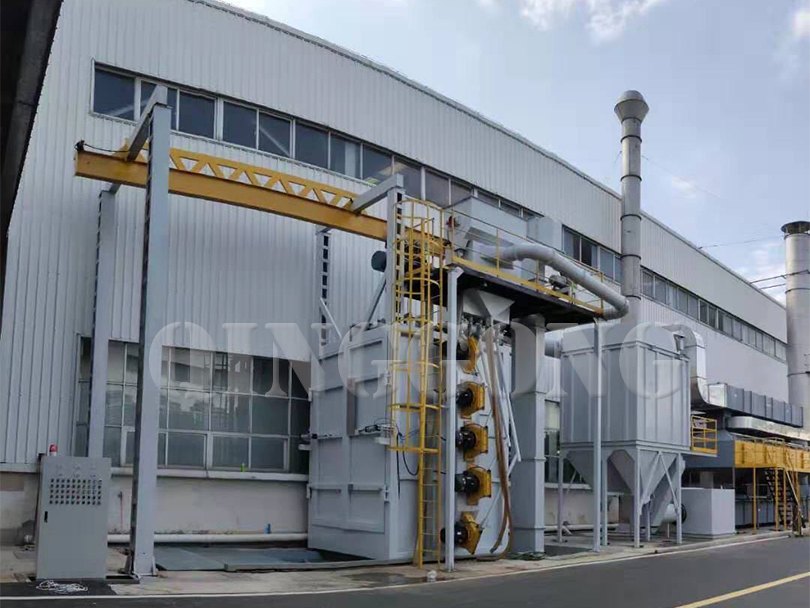

Hanger type shot blasting machine is the most flexible and versatile shot blasting machine. It comes in two options the single hook I type shot blasting machine and two hooks Y type shot blasting machine.

Hanger type shot blasting machine is specifically suitable for descaling of forgings, and desanding of castings, removal of burrs and scales, surface treatment and deburring of welded constructions, etc.

  • hanger type shot blasting machine 1
  • hanger type shot blasting machine 2
  • hanger type shot blasting machine 3
  • hanger type shot blasting machine 4
  • hanger type shot blasting machine 1
  • hanger type shot blasting machine 2
  • hanger type shot blasting machine 3
  • hanger type shot blasting machine 4
  • hanger type shot blasting machine 1
  • hanger type shot blasting machine 2
  • hanger type shot blasting machine 3
  • hanger type shot blasting machine 4

Products

NEWS

Contact

Hanger type shot blasting machine Specification


Machine TypeQGH7/12QGH10/16QGH12/18QGH14/22QGH16/23QGH18/25QGH30/30
Max. diameter of work piece batch(mm)700100012001400160018003000
Max. height of work piece1200160018002200230025003000
Max. weight of workpiece(kg)6008001000200030005000
10000
No. of wheelsx Power(kw)2*7.52*11
2*15
3*153*15
4*15
5*15
Foundation pitNoNoNoNoYesYesYes



Larger sizes are available, as are a huge range of options. Represented here are the Standard /Stock pre-engineered machines. Please contact us for further information.

hanger type shot blasting mahine 6.jpg

hanger type shot blasting machine 3D

Hanger type shot blasting machine working principle:

One batch of parts hang on the hook, then enter into the blasting chamber, blast wheels give anguler hit of shots to uneven shaped components resulting to the best finish on the components. Moves off the parts after blasting, then another hook enter into the chamber.

Loading options:

hanger type shot blasting machine 7.jpg

Technical Support:

  1. The material of hanger type shot blasting machine housing is wear-resistant manganese steel plate, that additional protection of the most exposed parts.

  2. The hanger type shot blasting machine with high efficiency abrasive cycle system. With crosswise screw conveyor, longitudinal screw conveyor, bucket elevator and separator. The abrasive from blast wheel to parts, then the crosswise screw conveyor to reclaim the abrasive to crosswise screw conveyor, then into bucket elevator and separator.

  3. Cantilever centrifugal high efficiency blast wheel, can operate clockwise or counter-clockwise, optimum abrasive flow rate for faster cleaning.

  4. Standard electrical element of hanger type shot blasting machine includes: PLC Siemens, display, timer, automatic or manual mode, pneumatic cylinders on the door, revolving hooks, automatic start-up of turbines, working-hours counter, etc.

  5. Hanger type shot blasting machine is non-standard shot blasting machine, can be manufactured by order, with adjusted size, blast wheel quantity and power, I type or Y type, etc.

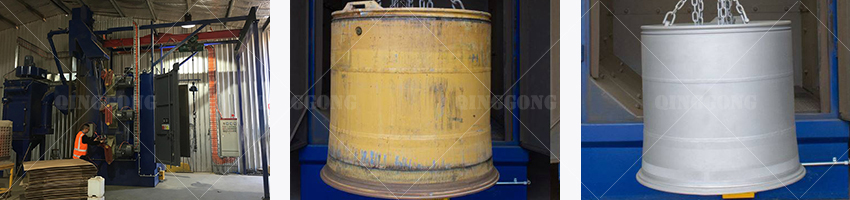

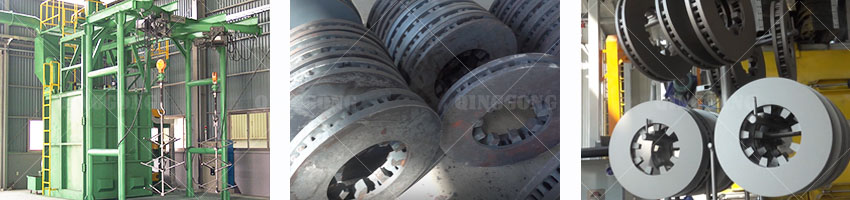

hanger type shot blasting machine for wheel hub

hanger type shot blasting machine for excavator bucket

hanger type shot blasting machine for weldment


Advantages of Hanger Type Shot Blasting Machine:

1. The hook type shot blasting machine has a compact structure, small external dimensions, no pit, easy to load and unload, transportation and installation debugging to adapt to a wide range.

2. With a large volume of shot blasting, high blasting speed, can significantly improve the cleaning efficiency, to obtain satisfactory cleaning quality.

3. Good sealing structure around the door to ensure that no flying projectiles when working to ensure the safety of workers and environmental protection.
