Tumble Belt Shot Blasting Machine | High-Efficiency Surface Cleaning for Small & Medium Workpieces

In modern metal manufacturing, small and medium-sized metal components such as castings, forgings, stampings, and hardware accessories often face common

surfaceproblems including surface oxide scale, residual sand, rust spots, and burrs. These tiny surface defects do not affect the overall structural strength of the

workpiece,but they seriously reduce the appearance quality, painting adhesion, and commercial value of finished products. For batch production factories that process

largequantities of small parts every day, traditional manual grinding, pickling treatment, and single-piece cleaning equipment can no longer meet the requirements of fast

production, stable quality, and environmental protection standards. As a mature and highly adaptable surface treatment equipment, the tumble beltumble belt shot

blasting machine has gradually become the mainstream pretreatment equipment for precision small and medium workpieces in machinery manufacturing, hardware

processing, automobile parts, and casting industries.

Different from hanger-type machines used for large single-piece tanks and roller conveyor machines used for long steel structures, tumble belt shot blasting equipment is

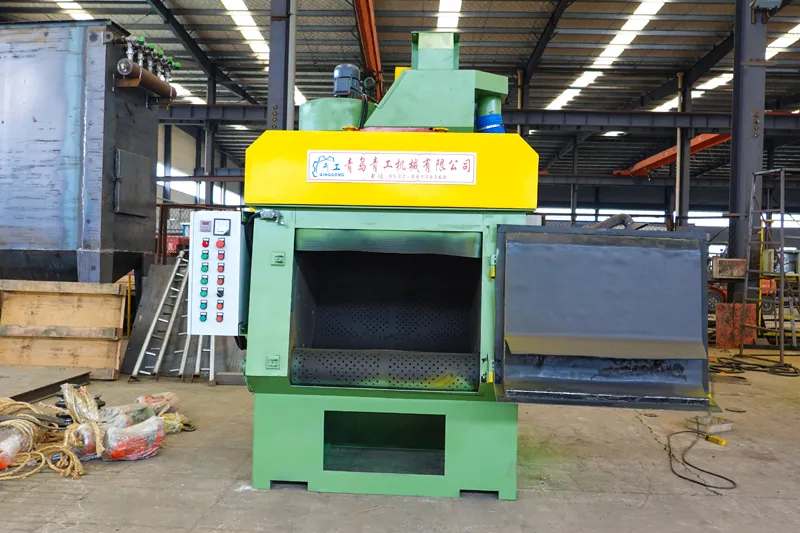

specially designed for bulk, small-sized, easily rolled, and non-deformable workpieces. It adopts a fully enclosed rubber track rotating structure to achieve automatic

flipping, tumbling, and comprehensive blasting of workpieces inside the chamber. This unique working mode ensures that every corner of the parts can obtain uniform

projectile impact, solving the long-standing industry problem of dead-angle cleaning in small irregular workpieces. The whole machine integrates automatic feeding, cyclic

blasting, automatic abrasive recycling, and dust removal functions, realizing true one-button automatic batch processing, which greatly improves the intelligent level of the

factory’s surface pretreatment line.

The core working principle of the tumble belt shot blasting machine relies on the coordinated operation of the rubber track system and high-efficiency blast wheels. During

operation, workpieces are evenly placed on the flexible rubber track. With the slow rotation and tumbling of the track, the stacked parts continuously turn over and roll

over, so that the upper surface, side surface, gap position and hidden corners of the workpieces can be fully exposed to the blasting area. Equipped with high-power blast

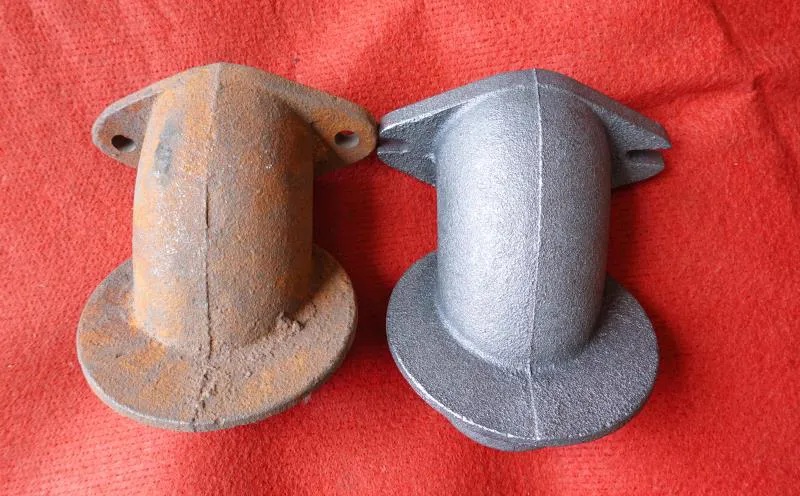

wheels, the equipment throws steel abrasives at high speed to form a dense and uniform projectile flow. The strong impact force instantly removes surface rust, casting

sand, oxide layer and machining burrs, forming a smooth and consistent metallic matte surface. Compared with manual treatment, the mechanical blasting effect is more

uniform, stable and repeatable, completely avoiding quality differences caused by different workers’ operating experience.

In terms of production efficiency, tumble belt shot blasting machines have obvious advantages in mass production scenarios. The equipment supports continuous cyclic

processing without frequent loading and unloading and workpiece positioning. One batch of workpieces can be completed in a fixed cycle, and the processing speed is

several times faster than traditional single-piece cleaning equipment. The fully automatic operation mode only requires one worker to complete feeding and start-up

supervision, which greatly reduces labor investment and lowers the comprehensive production cost of the enterprise. For foundries and hardware processing factories with

large daily output, this efficient batch cleaning method can effectively shorten the production cycle, improve workshop turnover efficiency, and ensure stable delivery of

customer orders.

Equipment safety and workpiece protection are the core advantages of rubber track design. Traditional steel track or mesh belt equipment is easy to cause collision

deformation and surface scratch damage to precision small parts. The high-elastic rubber track used in our equipment has good cushioning performance. When the

workpieces tumble and collide with each other during operation, the rubber base can effectively buffer rigid impact, protect the workpiece outline and surface precision,

and ensure no secondary damage during the cleaning process. This feature makes the tumble belt shot blasting machine particularly suitable for thin-wall parts, precision

castings, aluminum alloy parts and hardware accessories that are easy to deform and scratch.

In terms of environmental protection and energy saving, the tumble belt shot blasting machine adopts a fully sealed integral chamber structure. There is no dust overflow

or abrasive leakage during the whole working process. Matched with a high-efficiency pulse dust removal system, the equipment can automatically filter and collect fine

dust generated in the blasting process, completely meeting the environmental protection emission standards of European, American and domestic industrial workshops. At

the same time, the equipment is equipped with an automatic abrasive recycling and screening system, which can screen out broken abrasives and metal impurities, retain

intact steel shots for cyclic reuse, greatly reduce abrasive consumption and save production materials for users.

In actual industrial applications, tumble beltumble belt shot blasting machines have extremely wide applicability. It can efficiently process various cast iron parts, steel

castings, forged parts, stamping parts, automobile accessories, mechanical parts, hardware tools, and non-ferrous metal castings. Whether it is removing casting sand for

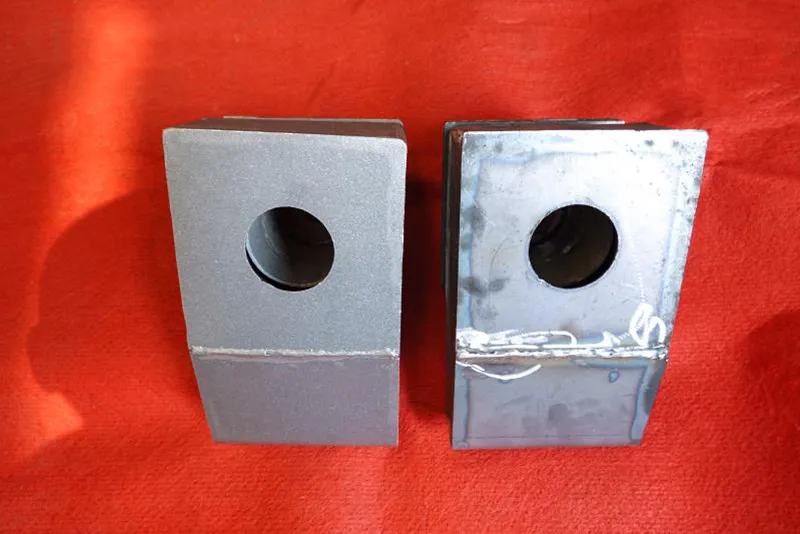

new castings, derusting and refurbishing old parts, or removing burrs and oxide layers for machined parts, the equipment can achieve ideal treatment effects. The

standardized surface pretreatment provides a reliable foundation for subsequent electrostatic spraying, paint spraying, electroplating and other processes, effectively

improving the bonding strength and anti-corrosion service life of the coating.

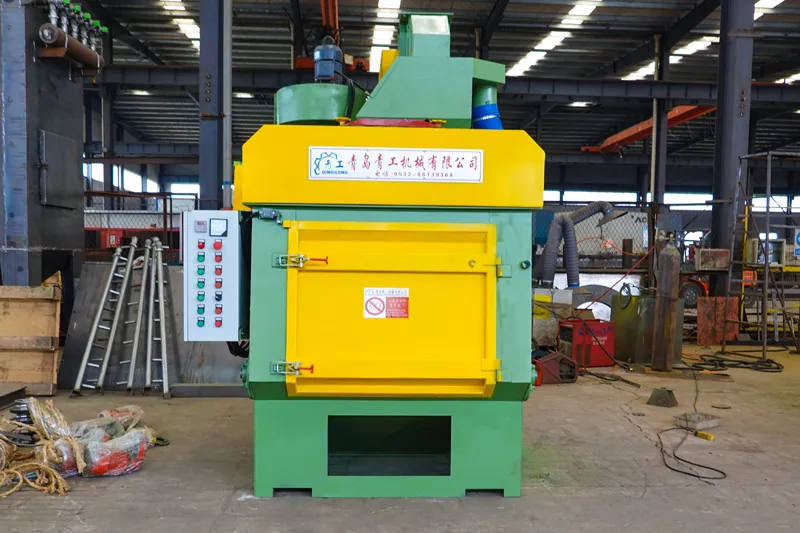

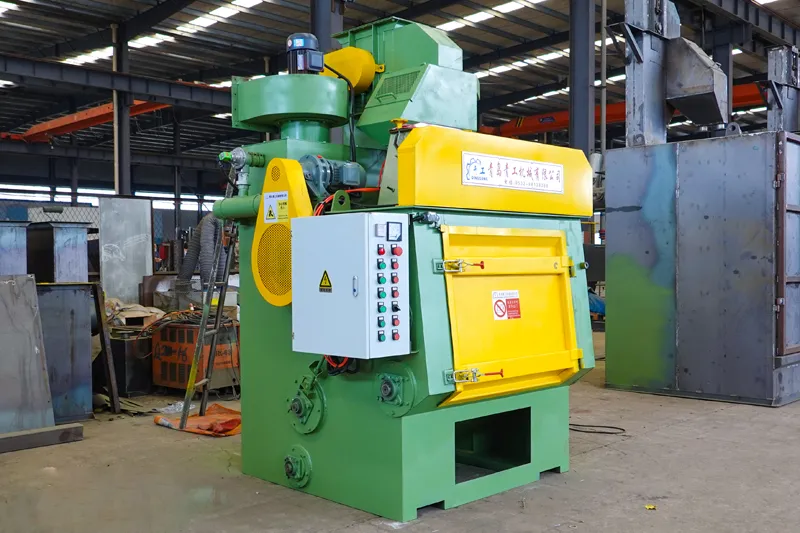

QGMA tumble belt shot blasting machines adopt modular optimized design, with compact structure, stable operation and low failure rate. The internal wear-resistant

protective plates are made of high-quality wear-resistant materials, which can withstand long-term high-frequency projectile impact and adapt to 24-hour continuous

heavy-load production. The equipment is simple to operate and easy to maintain, which can effectively reduce the enterprise’s later maintenance cost and equipment

downtime. At present, our tumble belt shot blasting equipment has been exported to many countries in Europe, Southeast Asia and the Middle East, serving batch surface

treatment production of various small and medium workpieces for global manufacturing enterprises.

With the continuous upgrading of industrial manufacturing standards, high-efficiency, environmentally friendly and standardized surface pretreatment has become an

indispensable part of product quality control. QGMA will continue to optimize tumble belt shot blasting machine performance, upgrade intelligent configuration, and

provide reliable, cost-effective batch cleaning solutions for global small and medium workpiece processing enterprises, helping customers improve product quality,

increase production efficiency and enhance market competitiveness.
