Hydraulic CNC Turret Punching Machine

Free Quote

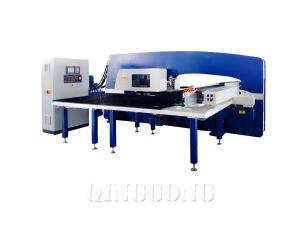

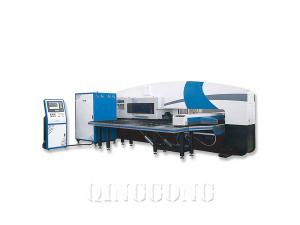

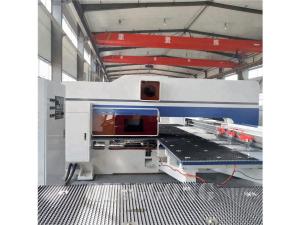

The driving system of the Y30 series CNC turret punch machine is hydraulic, with low noise, high speed, and high efficiency, and the thickness of the punching plate is 6mm. The design of high precision and high repetitive positioning accuracy enables the machine to produce more high-precision parts than other similar machines.

  • hydraulic cnc turret punching machine 1
  • hydraulic cnc turret punching machine 2
  • hydraulic cnc turret punching machine 3
  • hydraulic cnc turret punching machine 4
  • hydraulic cnc turret punching machine 5
  • hydraulic cnc turret punching machine 1
  • hydraulic cnc turret punching machine 2
  • hydraulic cnc turret punching machine 3
  • hydraulic cnc turret punching machine 4
  • hydraulic cnc turret punching machine 5
  • hydraulic cnc turret punching machine 1
  • hydraulic cnc turret punching machine 2
  • hydraulic cnc turret punching machine 3
  • hydraulic cnc turret punching machine 4
  • hydraulic cnc turret punching machine 5

NEWS

Contact

Features

1. Adopts the hydraulic system of the first class, whose stroke and speed are changed digitally. the max. punch hit can be reached 600hpm, and that at 25mm pace can be up to 350hpm.

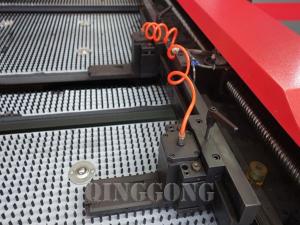

2. The large lead ball screw and linear guideway of high precision are equipped for driving.

3. The first-class CNC system with digital AC servo motor ensures precision.

4. The imported pneumatic, hydraulic and electric components ensure the perfect quality.

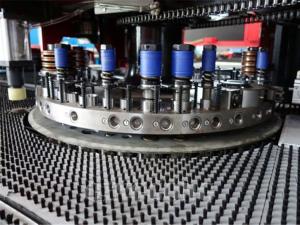

5. The turret with bushing is processed in pairs to make sure the coaxial of the punch and die, so the service life of the tooling together with the turret is largely extended.

6. After the advanced process and heat treatment, the service life of the tooling has been extended to a large extent.

adopting worm-wheel and worm mechanism of high precision. the auto-index, whose max. diameter is 88.9mm, can be extended.

7. Central lubrication unit reduces the friction between each working pairs to extend the machine service life.

8. Flexible configuration with long or short tooling can be selected according to the customer's requirement.

9. The integrated structure of beam and carriage enhances the rigidity and precision, which is especially suitable for VT-500,600and 800.


Basic Specification

No.

Name

unit

Parameter

1

Model

/

Y30-A

Y30-B

Y30-C

Y30-D

2

Workstation

number

16

24

32

32

3

Punching pressure

KN(T)

300(30)

4

Punching form

/

Hydraulic drive

5

Frame structure

/

Closed bed

6

machined sheet metal

X axis

mm

5000(Relocating with one time)

Y axis

mm

1250  or  1500

7

thickness of machined sheet metal

mm

<6

8

stamping frequency

cpm

<600

9

Pliers number

only

3

10

Clamp mechanism

/

Pneumatic

11

Repositioning cylinder

set

2

12

Control axis number

individual

4(X、Y、W、Z)

13

Turntable diameter

mm

620

780

900

1040

14

Mould form

/

Thick turret and long die

15

Worktable structure

/

Brush plate and floating universal ball

16

Punching accuracy of primary positioning

mm

±0.1

17

carrying weight

Kg

<150

18

Gas source

Mpa

O.5

19

Total power

KW

22

20

speed of sheet movement

m/min

<60

21

Rotating tower speed

r/min

30

22

Machine weight

ton

12

23

Outer size

mm

5000*4600*2000


Mold distribution


A

~12.7mm

B

~31.7mm

C

~50.8mm

D

~88.9mm

16  turret1

4

8

4

0

16 turret2

8

4

2

2

24  turret

12

8

2

2

32 turret

16

12

2

2

32  turret

(rotating with 2 B stations)

16

12

2

2


Application

It can be applied to punching, drawing and other shapes of holes in sheet metal. It is suitable for processing of batch or sample, reducing mold investment and reducing production cost. It is mainly used in various large and low-level switch cabinets, control panels and air conditioning panels. Box, cabinet, shell, metal furniture, kitchenware, advertising industry.
