Mechanical CNC Turret Punching Press Machine

Free Quote

Closed mechanical CNC turret punching machine by the programming software (or manual) processing program, by the servo feeding mechanism sent the plate material to the required processing position, at the same time by the die selection system select the appropriate die from the turret, by the mechanical power system according to the procedure of punching, automatic completion of the workpiece processing.

We have mechanical punch press for sale.

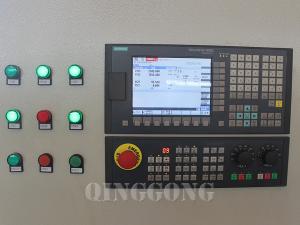

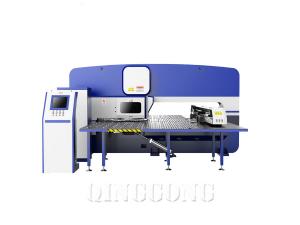

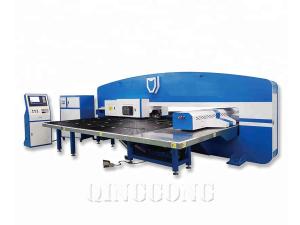

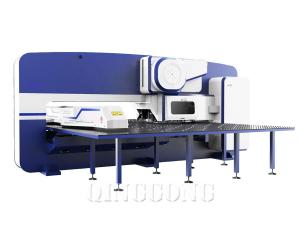

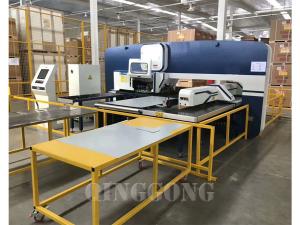

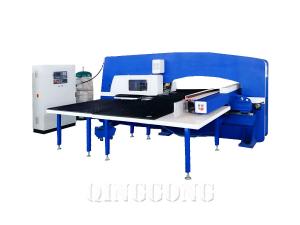

  • mechanical cnc  turret punching press machine 1
  • mechanical cnc  turret punching press machine 2
  • mechanical cnc  turret punching press machine 3
  • mechanical cnc  turret punching press machine 4
  • mechanical cnc  turret punching press machine 5
  • mechanical cnc  turret punching press machine 6
  • mechanical cnc  turret punching press machine 7
  • mechanical cnc  turret punching press machine 1
  • mechanical cnc  turret punching press machine 2
  • mechanical cnc  turret punching press machine 3
  • mechanical cnc  turret punching press machine 4
  • mechanical cnc  turret punching press machine 5
  • mechanical cnc  turret punching press machine 6
  • mechanical cnc  turret punching press machine 7
  • mechanical cnc  turret punching press machine 1
  • mechanical cnc  turret punching press machine 2
  • mechanical cnc  turret punching press machine 3
  • mechanical cnc  turret punching press machine 4
  • mechanical cnc  turret punching press machine 5
  • mechanical cnc  turret punching press machine 6
  • mechanical cnc  turret punching press machine 7

NEWS

Contact

Features

mechanical cnc turret punching machine 1

Turret

The turret we use high strength wear-resistant materials-ductile iron, with the features of automatic lubrication and minimal wear.

Adopts integrated cast thick turret structure after heat treatment to eliminate stress annealing.

Using special fixture processing in pair.

Turret thickness: upper 80mm, lower 70mm

mechanical cnc turret punching machine 2

Worktable

We adopt brush and universal ball mixed worktable, can not only facilitate processing but also can protect the plate very well.


mechanical cnc turret punching machine 3

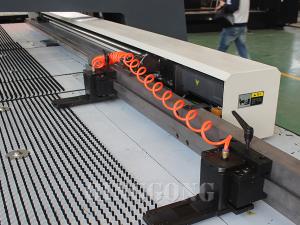

Feed mechanism

About the crossbeam, we using lengthened and integrated structure(up to 3700mm); after integrated rigorous stress relief annealing heat treatment, suit for processing large plate, stable and safe.

About the linear guide rail, we choose "HIWIN" brand-wide seat linear guide rail which originally imported from Taiwan.

About the ball screw, we choose "TBI" brand large stroke ball screw which originally imported from Taiwan.

About the clamps, we using full floating structure clamps.


Basic Specification

Model

Name

unit

Parameters

1

Model

/

J30-A

J30-B

J30-C

J30-D

2

tool station

number

16

24

32

32

3

Punching pressure

KN(T)

300(30)

4

Punching form

/

Pneumatic clutch drive

5

Frame structure

/

Closed bed

6

machined sheet metal

X

mm

5000(Relocating with one time)

Y

mm

1250 or  1500

7

thickness of machined sheet metal

mm

<6

8

stamping frequency

cpm

<250

9

Pliers number

only

3

10

Clamp mechanism

/

Pneumatic

11

Repositioning cylinder

set

2

12

Control axis number

3(X、Y、W)

13

Turntable diameter

mm

640

780

900

1040

14

Mould form

/

Thick turret and long guide

15

Worktable structure

/

Brush plate and floating universal ball

16

Punching accuracy of primary positioning

mm

±0.1

17

carrying weight

Kg

<150

18

Gas source

Mpa

O.5

19

Total power

KW

12.5

20

speed of sheet movement

m/min

<60

21

Rotating tower speed

r/min

30

22

Machine weight

ton

13

23

Shape size

mm

5000*4600*2000


Mold distribution


A

~12.7mm

B

~31.7mm

C

~50.8mm

D

~88.9mm

16  turret1

4

8

4

0

16 turret2

8

4

2

2

24  turret

12

8

2

2

32 turret

16

12

2

2

32  turret

(rotating with 2 B stations)

16

12

2

2


Application

Widely used in punching processing machinery, electrical appliances, instruments, screens, hardware, metal furniture; all kinds of metal plates, boxes, cabinets and other industries.
