A Hanger Shot Blasting Machine is one of the most efficient industrial surface treatment systems used for cleaning, descaling, rust removal, and surface strengthening of large, heavy, or irregularly shaped workpieces. It is widely applied in industries such as automotive, aerospace, steel fabrication, casting, and heavy machinery manufacturing.
Unlike drum or table-type systems, a hanger-based design allows parts to be suspended and rotated during blasting, ensuring uniform surface treatment on complex geometries. This makes it a preferred solution for high-value components that require consistent finishing quality.
Modern manufacturers like QINGGONG are continuously improving hanger wheel blasting systems to increase efficiency, reduce energy consumption, and improve automation levels.
What Is a Hanger Shot Blasting Machine?

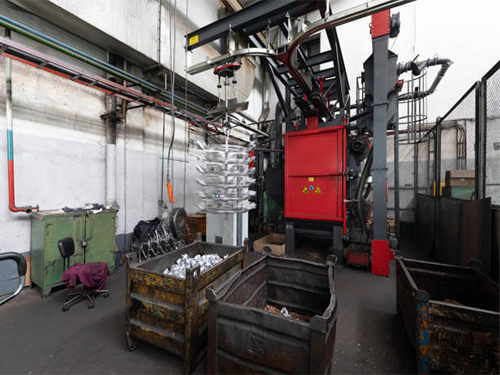

A hanger shot blasting machine is a surface preparation system where workpieces are hung on hooks or hangers and rotated inside a blasting chamber while high-speed abrasive media is projected onto their surfaces.
The process achieves:
Rust removal
Scale cleaning after heat treatment
Surface roughening for coating adhesion
Stress relief and strengthening
Key Working Principle
Workpieces are loaded onto a hanger system
The hanger moves into a sealed blasting chamber
Blast wheels project steel shots at high velocity
The hanger rotates for full surface coverage
Abrasive recovery and recycling system collects and reuses media
This system is especially effective for irregular-shaped parts that cannot be processed in bulk blasting systems.
Key Components of a Hanger Shot Blasting Machine
A high-performance hanger shot blasting machine consists of multiple integrated systems working together:
1. Hanger and Hook System
Used to suspend and rotate workpieces during blasting. It is designed for heavy load-bearing capacity.
2. Blasting Chamber
A sealed enclosure that prevents abrasive leakage and ensures safe operation.
3. Blast Wheel Assembly
The core component that accelerates abrasive media at high speed toward the workpiece surface.
4. Abrasive Recycling System
Includes screw conveyors, elevators, and separators to recycle steel shot efficiently.
5. Dust Collection System
Removes dust and fine particles to maintain clean air and environmental compliance.
6. Control System
PLC-based automation systems control timing, rotation speed, and blasting parameters.
Why Choose a Hanger Shot Blasting Machine?
A hanger-type blasting system offers multiple advantages over conventional blasting technologies.
Key Benefits
Suitable for complex-shaped and heavy parts
High surface cleaning consistency
Fully automated operation options
Reduced manual labor requirements
Improved coating adhesion quality
Environmentally friendly abrasive recycling
Industry Use Cases
Automotive components (axles, suspension parts)
Cast iron and steel foundries
Forging industry
Railway components
Construction machinery parts
Choosing the Right Hanger Type Shot Blasting Machine
Selecting the right machine depends on production needs, part geometry, and automation level.
Key Selection Factors
Workpiece Size and Weight
Heavier parts require reinforced hanger systems
Production Volume
High output requires spinner hanger systems
Surface Quality Requirements
Precision finishing demands multi-wheel configurations
Automation Level
PLC control, robotic loading, and conveyor integration
Energy Efficiency
Modern systems reduce abrasive and power consumption
Recommended Selection Guide
| Application Type | Recommended Machine Type |
|---|---|
| Small batch precision parts | Standard hanger shot blasting machine |
| Large castings and forgings | Heavy-duty hanger wheel blasting machine |
| Mass production lines | Spinner hanger shot blasting machine |
| Mixed production environments | Flexible automated hanger system |
FAQs
1. What industries commonly use a hanger shot blasting machine?
It is widely used in automotive, aerospace, construction machinery, foundry, and steel fabrication industries.
2. What materials can be processed in a hanger wheel blasting machine?
Steel, cast iron, aluminum alloys, and various forged components can be processed effectively.
3. Is a hanger shot blasting machine suitable for delicate parts?
Yes, because parts are suspended without direct contact, reducing collision damage risk.
4. What is the difference between manual and automated hanger systems?
Automated systems reduce labor costs, increase consistency, and allow integration into production lines.
Conclusion
The Hanger Shot Blasting Machine is a highly efficient and versatile solution for industrial surface treatment, especially for complex or heavy components. With advancements like spinner hanger systems and intelligent automation, manufacturers can achieve higher productivity, better surface quality, and lower operational costs.
Selecting the right system—and working with experienced blasting machine manufacturers such as QINGGONG—ensures long-term reliability and competitive manufacturing performance.
