KT series high performance turbines have blasting wheels provided with eight throwing blades locked into the wheel double-disc. The double-disc wheel offers the following advantages:

  • Improved abrasive flow for faster cleaning cycles

  • Direct mounted motors or spindles eliminate

  • manual wheel alignment issues

  • Easy front of housing access to runner head

  • Optional replaceable, long-lasting cast liners

  • Integrated dual labyrinth hub seal for superior abrasive containment

  • T-nuts assist in housing replacement

  • Integral U-shaped feed spout clamp for improved adjustment and assembly

  • Low speed and high speed direct drive motors

  • Direct coupled spindle drives allow for re-use of existing motors

  • Less part wear due to greater concentricity and more precise alignment

  • spare parts 1
  • spare parts 2
  • spare parts 3
  • spare parts 4
  • spare parts 5
  • spare parts 6
  • spare parts 7
  • spare parts 8
  • spare parts 1
  • spare parts 2
  • spare parts 3
  • spare parts 4
  • spare parts 5
  • spare parts 6
  • spare parts 7
  • spare parts 8
  • spare parts 1
  • spare parts 2
  • spare parts 3
  • spare parts 4
  • spare parts 5
  • spare parts 6
  • spare parts 7
  • spare parts 8

NEWS

Contact

SpecificationType KT  3.6/3.8
Type KT4.2/ 5.0
Driving power (kW)7,5111518.5223075
7,5
Nominal speed (rpm)2980298029802680268026802680
2 860
Drive  typeDirect-driveDirect-driveDirect-driveBelt-driveBelt-driveBelt-driveBelt-drive
Belt-drive
Belt-drive
Blasting wheel Ø mm360/380360/380360/380420/500500500500
330/380
No. of blades8888888
6
Blade width (mm)55555555757575
55
Housing materialSteel/ manganese steelSteel/ manganese steel
Lining materialHight chrome casting ironHight chrome casting iron
Impeller materialtempered tool steeltempered tool steel
Control cage materialHight chrome casting ironHight chrome casting iron
Feed tube materialsteel castingsteel casting
Throwing blade materialcast ironcast iron

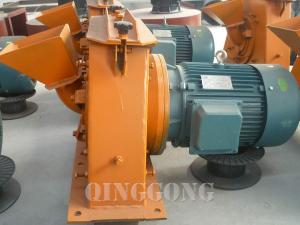

Direct-drive blasting turbines is a new type having advantages of high efficient blast turbines, elegant appearance, compact structure, low noise level, energy-efficient, environmental-friendly.Direct-drive blasting turbines

spare parts 1

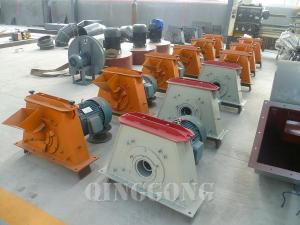

Belt-drive blasting turbines

Belt-drive blast turbines are conventional, large abrasive flow rate, good cleaning effect, etc. It is an essential part of the large shot blasting machine.


spare parts 2

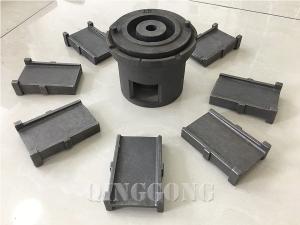

Blasting blade, blasting impeller, control cage made of high-chromium wear-resistant cast iron material, which greatly extends the service life.


spare parts 3


The partial-thickness op guard, side guard, and end guard reach to 70mm, and the thickness of the ordinary guard is generally 12mm,  greatly improved the wear resistance and service life of the guard plate, reducing the frequency and time of repair and replacement.


spare parts 4
