Continuous Rocker Barrel Shot Blasting Machine

Free Quote

Continuous Shot Blasting Machine or Continuous Conveyor Shot Blasting Machine is automatic, continuous, dust-free shot blasting equipment, with a high degree of flexibility to meet the changing production requirements. It can quickly adapt to the production efficiency, processing technology and market demand changes. It can be easily integrated into the production line with other processing equipment, which can realize the automatic production process. This can ensure the whole production process line reach to the high production efficient and low-cost operation while improving the working environment.

  • continuous rocker barrel shot blasting machine
  • Continuous Conveyor Shot Blasting Machine
  • Continuous Shot Blasting Machine
  • continuous rocker barrel shot blasting machine for sale
  • continuous rocker barrel shot blasting machine
  • Continuous Conveyor Shot Blasting Machine
  • Continuous Shot Blasting Machine
  • continuous rocker barrel shot blasting machine for sale
  • continuous rocker barrel shot blasting machine
  • Continuous Conveyor Shot Blasting Machine
  • Continuous Shot Blasting Machine
  • continuous rocker barrel shot blasting machine for sale

Products

NEWS

Contact

Continuous Rocker Barrel Shot Blasting Machine Basic Specification


Type

DT-11-350

DT-14-450/

DT-14-650/

DT-14-850/

DT-14-1050

DT-17-650/

DT-17-850

DT 20-650/

DT 20-850

Max. workpiece diagonal (mm)

400

850

980

1150

Throughput rate (t/h)

2-5

8-25

15-33

15-38

Max. workpiece weight (kg)

30

150

150

150

Number of blast wheels

3

4-10

6-10

6-10

Power per blast wheel (kW)

45

37-45

37-45

37-45



FEATURES:

  • Shaker Blast / Rocker Barrel Machine

  • Greatly reduced workforce, no workers are required to transport castings

  • Comfortable and safe working conditions

  • Compact layout is possible requiring only about half the space of an equivalent batch type machine

  • Reduced lead time-continuous blasting minimizes time loss


Rocker Barrel system

After in-line sand shakeout and cooling, the castings are delivered to the Rocker Barrel via an inclined belt and shaker load conveyor, providing process improvements to the overall automated operation. The drive that rocks the barrel is controlled from a touch screen on the operator panel. An adjustable range of rocking motion ensures different shaped castings can be tumbled satisfactorily. A separate mechanism sets the adjustable decline angle for controlling the flow of castings through the machine. The control system allows both manual and automatic selection of the work conveyor parameters to compensate for changes in part configurations and cleaning requirements. The combination of a variable decline angle and rocking angle for the work conveyor barrel provides a high degree of control for achieving effective blast coverage.

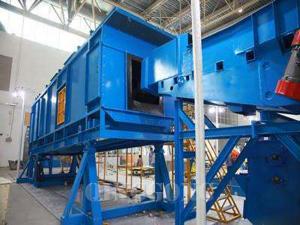

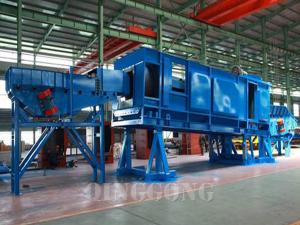

continuous rocker barrel shot blasting machine 1

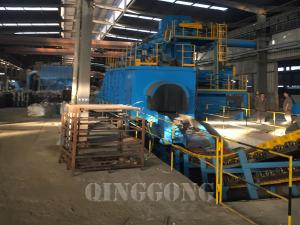

continuous rocker barrel shot blasting machine 2


Application

  • Removing sand and cores from castings

  • Descaling castings and forgings

  • Handling mixed and single products run

  • Cleaning cluster

  • Keeping the blast cleaning performance at a consistently high level, regardless of any fluctuations in production rates
