Steel Plate Shot Blasting Machine

Free Quote

Steel plate shot blasting machine is one kind of roller conveyor shot blasting machines. It can remove all rust, corrosion and mill scale from steel plate and provides ideal surface finish (SA2.5) for securing a continuous and effective bond between the steel surface and coat.


  • steel plate shot blasting machine 1
  • steel plate shot blasting machine 2
  • steel plate shot blasting machine 3
  • steel plate shot blasting machine 4
  • steel plate shot blasting machine 1
  • steel plate shot blasting machine 2
  • steel plate shot blasting machine 3
  • steel plate shot blasting machine 4
  • steel plate shot blasting machine 1
  • steel plate shot blasting machine 2
  • steel plate shot blasting machine 3
  • steel plate shot blasting machine 4

NEWS

Contact

Steel plate shot blasting machine parameter:


Type

unit

QGRB600

QGRB1000

QGRB1500

QGRB2000

QGRB2500

QGRB3000

Effective blasting width

mm

600

1000

1500

2000

2500

3000

Dimension of entrance(W×H)

mm

800×300

1200×300

1700×300

2200×300

2700×300

3200×300

Work speed to achieve cleaning of Sa2.5 ISO8501

m/min

0.5~3

0.5~3

0.5~3

0.5~3

0.5~3

0.5~3

Number of wheels×power

kW

4×7.5/11

4×11/15

4×11/15

6×11/15

8×11/15

8×11/15

Wheel optional

kW

4×15

6×15/18.5

6×15/18.5

Abrasive initial filling capacity

kg

2000

4000

4000

4500

6000

6000

Processed length of the workpiece

mm

1200~12000

1200~6000

1200~12000

3000~12000

2400~12000

3000~18000

Foundation pit required


No

No

No

Yes

Yes

Yes

The technical data is not binding and may be subject to change.

Depending on the type of parts, production method, etc., further machine types and measurement specification sheets upon request.

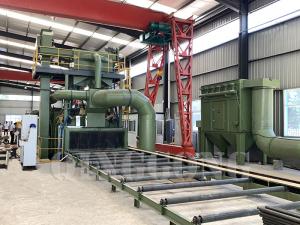

steel plate shot blasting machine 1

QINGGONG's steel plate shot blasting machine features:

Conveying system:

Component: rollers, chain, reducer, sprocket cover, and roller support.

  1. A roller is first welding and then processing, to ensure the concentricity of the roller

  2. The material of roller is 45# carbon steel, it can use 8-10 years.

  3. Both sides of the roller are equipped with sprocket covers to protect the sprockets and spindle nose.

  4. The roller support has secondary reinforcement, it is enough to load the workpiece.

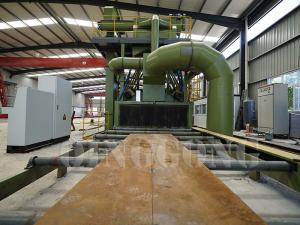

steel plate shot blasting machine 2

Blasting Chamber:

Steel plate shot blasting machine’s chamber component: shot blasting chamber, front and rear sealing room, sand-guide channel and others.

  1. The engineering team uses 3-D dynamic simulation design blast turbines layout to ensure that the steel shot ray can cover the surface of the workpiece 360 degrees.

  2. Shot blasting chamber with ZGMn13 steel guard plate, long service life.

  3. Six layers of protection curtain to prevent the shot balls spatter out during blast cleaning. The curtain layers are natural rubber material with leaf spring which can automatically reset, ensure the sealing of the machine.

  4. High chrome wear-resistant cast iron grate guard plate which protects the screw conveyor and prevents big clump to get into the hopper damaging the bottom screw conveyor.

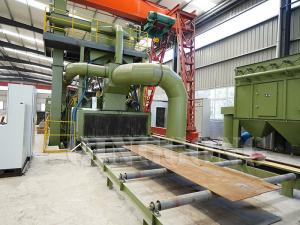

steel plate shot blasting machine 3

Abrasive cleaning up system:

Abrasive cleaning up system consists of brush, screw conveyor, abrasive blowing fan and lifting mechanism. This system can remove the steel shot left on the plate after blasting.

  1. The material of brush is high strength polyamide nylon, it has enough elasticity to sweep the 95% abrasive accumulated on the steel plate into the screw conveyor.

  2. High-pressure abrasive blowing fan blows off un-collected steel shot on the plate to brush. In this way, the whole system recycles all the abrasive from the steel plate.

  3. The lifting mechanism can automatically adjust the height of the brush, screw and abrasive blowing fan according to the thickness of the steel plate, to meet the needs of the customer.

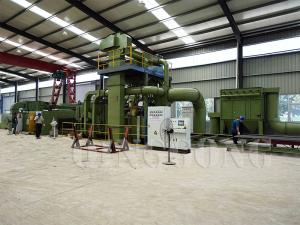

steel plate shot blasting machine 4
