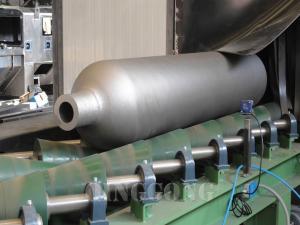

Gas cylinder shot blasting machine is used to automatically clean the surface of the cylinders by blasting of the abrasive coming from the blast turbines of the machine in a confined chamber. The cylinders get shot blasted as they pass through the blasting chamber on the base of the machine. The cylinders also get rotated on the rollers as they pass through to ensure the cleaning of the complete surface. LPG cylinder shot blasting machine is one of the types of cylinder shot blasting machine.

  • gas shot blasting

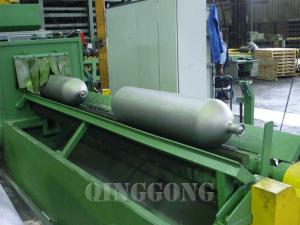

  • lpg cylinder shot blasting machine

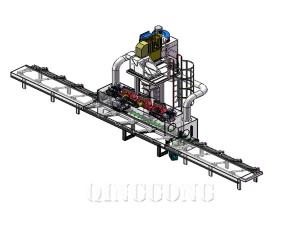

  • cylinder shot 3d drawing

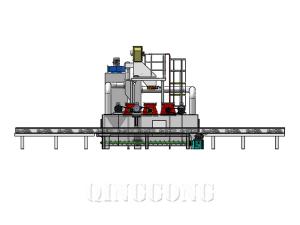

  • cylinder shot blasting machine drawing
  • gas shot blasting
  • lpg cylinder shot blasting machine
  • cylinder shot 3d drawing
  • cylinder shot blasting machine drawing
  • gas shot blasting
  • lpg cylinder shot blasting machine
  • cylinder shot 3d drawing
  • cylinder shot blasting machine drawing

Products

NEWS

Contact

Gas Cylinder Shot Blasting Machine Overview

QINGGONG MACHINERY has 3 solutions for gas cylinder shot blasting machine: skew roll shot blasting machine, hanger type shot blasting machine and overhead rail shot blasting machine.


1. Skew roll cylinder shot blasting machine (Diabolo shot blasting machine)

This kind of shot blasting machine has large productivity, which can blast cleaning 200-600 per day(8 working hours), it is especially suitable for cylinders manufacturers.

2. Hanger type cylinder shot blasting machine

This kind of shot blasting machine is the most cost-effective solutions, it is suitable for the company which provide blast cleaning services for cylinders, and the productivity for this kind of shot blasting machine is about 100 to 150 pieces per shift at most.

3. Overhead rail cylinder shot blasting machine

This kind of shot blasting machine will continuous blast cleaning the cylinders on a overhead rail, and this kind of shot blasting machine can be designed blast cleaning 500-1000 cylinders per shift, the productivity is the most among the three solutions.


Gas Cylinder Shot Blasting Machine Technical Specifications


technical specifacationQGCB300QGCB600
diameter for cylinder≤300mm600mm
No. of blast turbine23
power of blast turbines11kw/15kw/18.5kw
abrasive recovery systemscrew conveyor +bucket elevator + separator
dust collectorHR-8HR-12
electric control systemPLC, auto/manual model



Composition of Gas Cylinder Shot Blasting Machine

1. transportation system

2. blasting chamber

3. blast turbine

4. abrasive recovery system ( screw conveyor, bucket elevator, separator)

5. abrasive dosing units

6. dust collector

7. electric control system

Different Types of Gas Cylinder Shot Blasting Machine for Sale

QINGGONG MACHINERY has 3 solutions for gas cylinder shot blasting machine: skew roll shot blasting machine, hanger type shot blasting machine and overhead rail shot blasting machine.


Skew roll shot blasting machine (Diabolo shot blasting machine)

This kind of shot blasting machine has large productivity, which can blast cleaning 200-600 per day(8 working hours), it is especially suitable for cylinders manufacturers.


skew roll cylinder shot

Hanger type shot blasting machine

This kind of shot blasting machine is the most cost-effective solutions, it is suitable for the company which provide blast cleaning services for cylinders, and the productivity for this kind of shot blasting machine is about 100 to 150 pieces per shift at most.


Hanger type gas cylinder shot blasting machine

Overhead rail shot blasting machine

This kind of shot blasting machine will continuous blast cleaning the cylinders on a overhead rail, and this kind of shot blasting machine can be designed blast cleaning 500-1000 cylinders per shift, the productivity is the most among the three solutions.


Overhead rail cylinder shot blasting machine

Gas cylinder shot blasting machine advantage:

  1. Suitable for cleaning the outer wall of LPG, CNC, GAS cylinders.

  2. Removing the rust and oxide, increasing the surface quality of the bottles and cylinders.

  3. Removing the casting sands, cores and old paint for a better paint ashesive.

  4. The cylinder shot blasting machine can be used not only alone, but also in combination with other machines to form a gas shot blasting cylinder production line.


Applications of gas cylinder shot blasting machine

1. Oxygen cylinder, LPG cylinder, GAS cylinder: Remove rust, refurbishment.

2. Pipes: Remove surface oxidation, paint, burrs, etc

3. Steel bar: Remove rust, burrs

4. Cylindrical workpiece

5. Spring


A Video of Cylinder Shot Blasting Machine



Gas Cylinder Shot Blasting Machine Related Resources



Cylinder Shot FAQ

  • What is the target market for this cylinder shot blasting machine?

    The main target markets include cylinder manufacturers, used gas cylinder refurbishment plants, pipe manufacturers and spring manufacturers.

  • What type of abrasive media does this gas cylinder shot blasting machine use?

    The main types of abrasive media are steel shot, cut wire shot, stainless steel shot.

  • How many people are needed to run the cyliner shot blasting machine?

    2 workers are enough.
